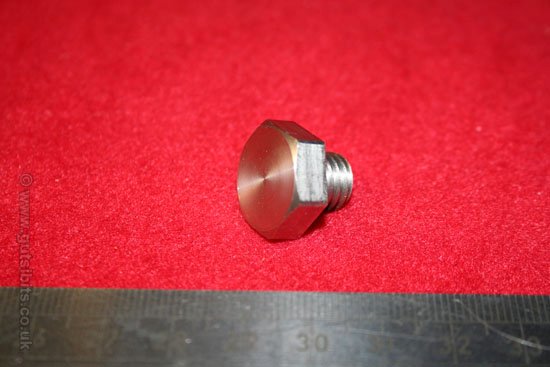

Stainless steel drain plug for drive box and gearbox, includes recess for crush washer to locate in. Also used as level plug on big twins and front sump drain on small twins.

Also known as Guzzi ref. 95980212, 95980610. Use crush washer SIA10900 with this bolt

95980214-z 95980214 GU95980214 95 98 02 14
 9598 0214 9598.0214 95.98.02.14

Dimensions:
M10

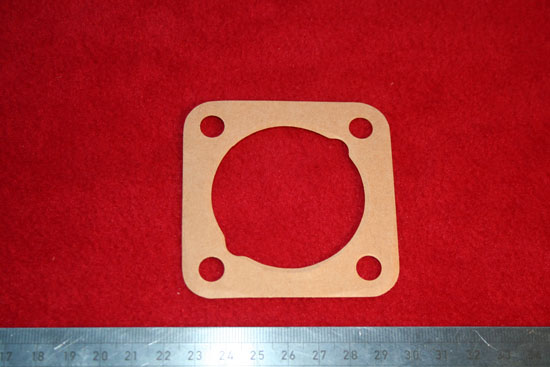

Gasket for union of swing arm plate and drive box

12352900-z 12352900 GU12352900 12 35 29 00
 1235 2900 1235.2900 12.35.29.00

Dimensions:
52mm ID

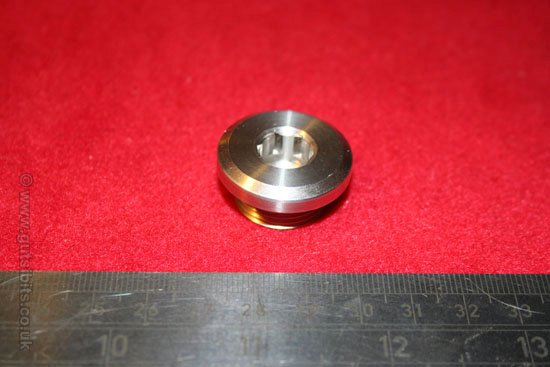

M20 gearbox and drive box filler plug (big twins), drive box level plug (small twins), also used for cylinder head bolt

See ACA12600 for aluminium alternative that can be undone by hand. Includes recess for O ring ENA90203

 12022600 GU12022600 12 02 26 00
 1202 2600 1202.2600 12.02.26.00

Dimensions:
M20 x 1.5

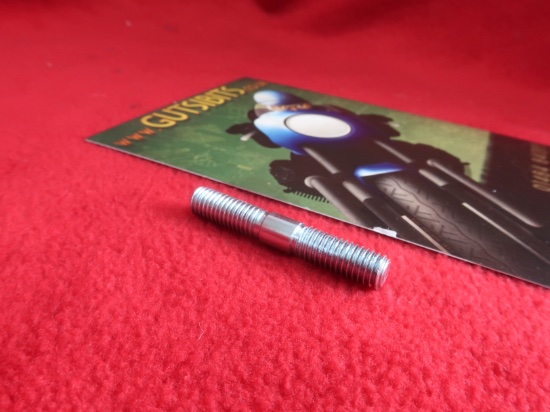

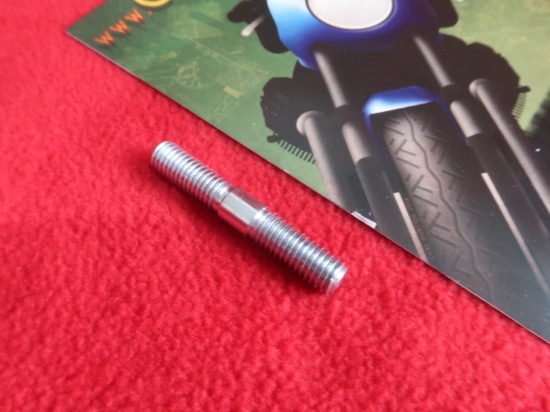

Zinc finish M8 stud for drive box to swing arm union

4 required per bike

 96508045 GU96508045 96 50 80 45
 9650 8045 9650.8045 96.50.80.45

Dimensions:
M8 stud, 50mm overall

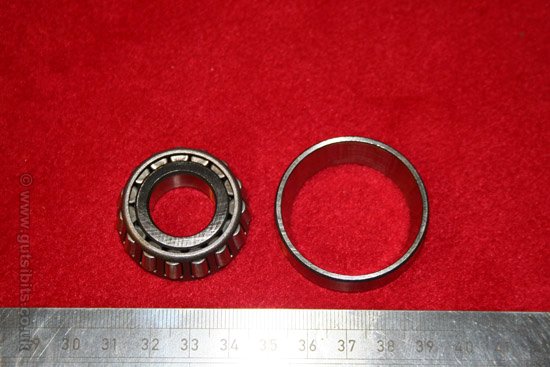

Swing arm taper roller bearing

2 races required per bike, supercedes unsealed bearing Guzzi ref. 92249217 and 92249216. See TRA90434 for oil seals

 92249213 GU92249213 92 24 92 13
 9224 9213 9224.9213 92.24.92.13

Dimensions:
40mm OD

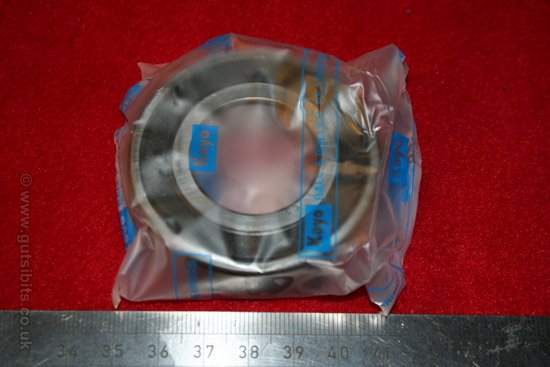

Carrier bearing for UJ

92204228-z 92204228 GU92204228 92 20 42 28
 9220 4228 9220.4228 92.20.42.28

Dimensions:
58mm OD

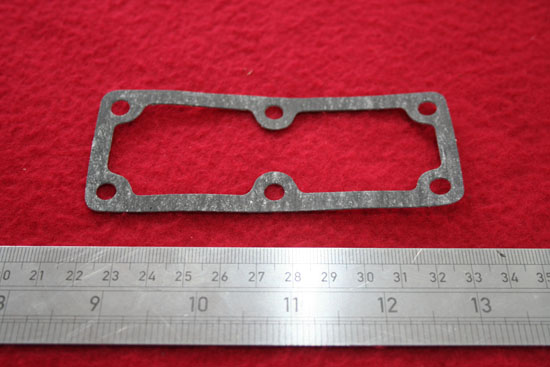

Gasket for drive box sump

 12351601 GU12351601 12 35 16 01
 1235 1601 1235.1601 12.35.16.01

Dimensions:
L 110mm W 45mm

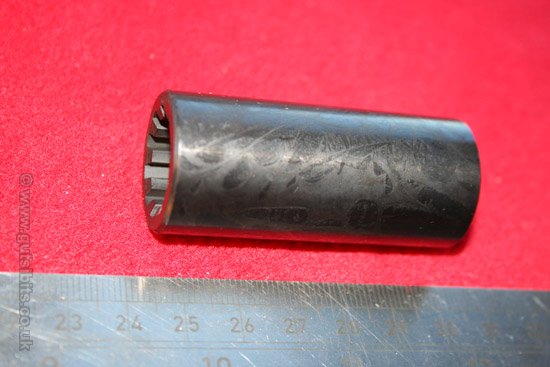

10 spline connection sleeve to connect drive box to driveshaft

12327700-z 12327700 GU12327700 12 32 77 00
 1232 7700 1232.7700 12.32.77.00

Dimensions:
59mm long

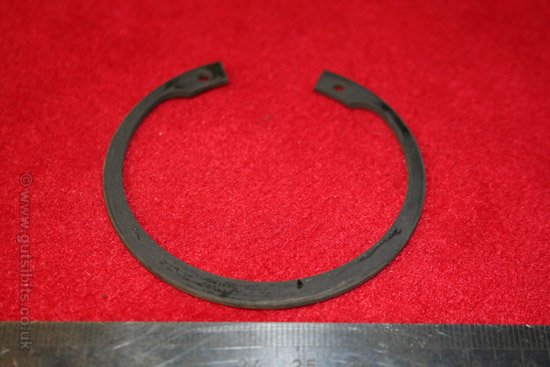

Retaining circlip for UJ carrier bearing

 90272058 GU90272058 90 27 20 58
 9027 2058 9027.2058 90.27.20.58

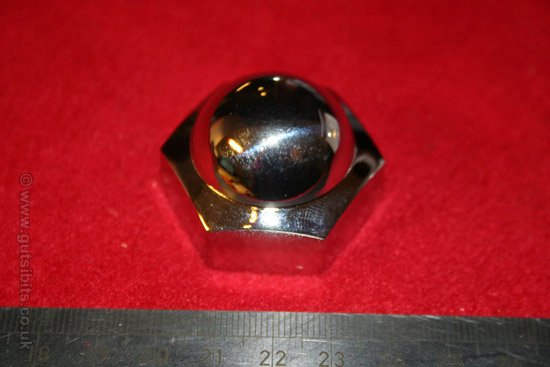

Chromed M20 dome head lock nut for swing arm pivot stub

 This part is available by special order, request a quote

12547800-z 12547800 GU12547800 12 54 78 00
 1254 7800 1254.7800 12.54.78.00

Dimensions:
M20
