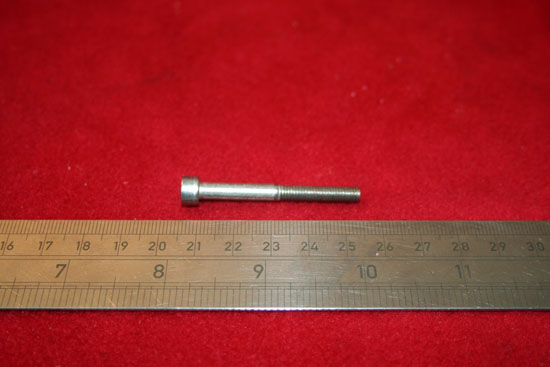

A2 stainless socket cap screw M6 x 55, used for long sump bolt on 850/1000 models where there isn't a sump extension, but used for shorter sump bolt where a sump extension is fitted. Can be used in place of Guzzi ref. AP8150045

14 required if used with sump extension, 4 if used without sump extension

Dimensions:
M6 x 55mm

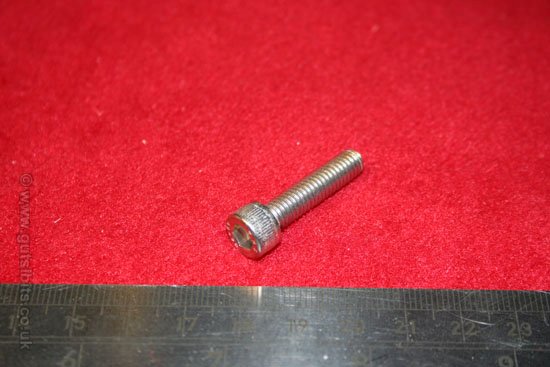

A2 stainless socket cap screw M6 x 25

Used for rocker cover, timing cover, sump (no extension), VHB30 inlet manifold on 850/1000 models and rocker cover, timing cover, sump, inlet manifolds on V50, V35. Also used for rocker cover and sump on all two valve per cylinder Brevas, Grisos etc... (16 required per engine). Also known as Guzzi refs. 98692325 and 98620325 can be used in place of 98822325

05025930-z 05025930 GU05025930 05 02 59 30
 0502 5930 0502.5930 05.02.59.30

Dimensions:
M6 x 25mm

A2 stainless socket cap screw M10 x 30, used for F08/P8 and P9 brake caliper bolts

Also used for front lower frame rail bolts on V7 Classic, V7 Cafe etc... Can be used in place of reduced head bolt Guzzi ref. 98622530, 03530530 and 564632 and 887878 . Can also be used in place of hex head bolt Guzzi ref. 98054530

 98682530 GU98682530 98 68 25 30
 9868 2530 9868.2530 98.68.25.30

Dimensions:
M10 x 30mm

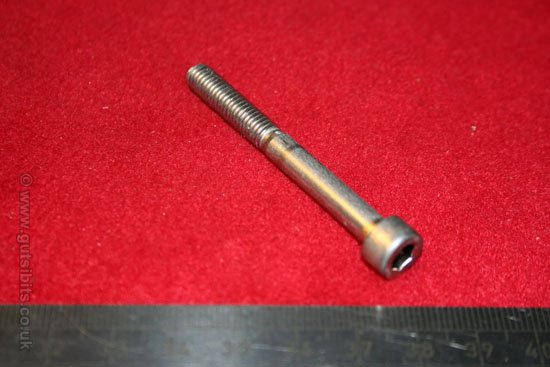

A2 stainless socket cap screw M5 x 45, used for retaining Bosch alternator stator

 98620245 GU98620245 98 62 02 45
 9862 0245 9862.0245 98.62.02.45

Dimensions:
M5 x 45mm

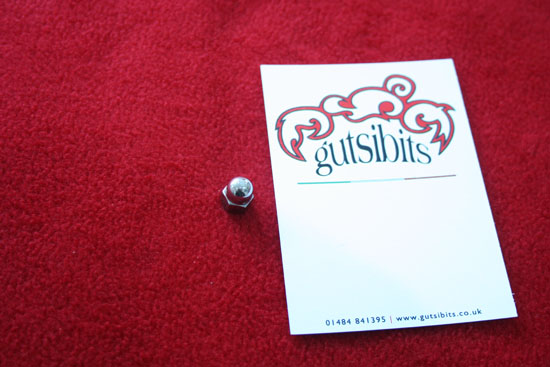

Stainless steel M6 dome head nut, many applications

Many applications including indicator mounting and securing exhaust flanges on V7 models

 92787006 GU92787006 92 78 70 06
 9278 7006 9278.7006 92.78.70.06

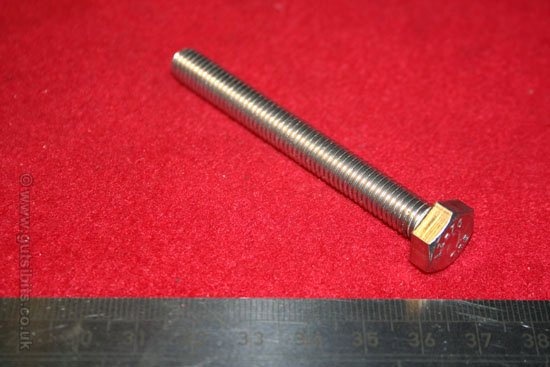

A2 stainless steel hex head bolt

Dimensions:
M8 x 70mm

A2 stainless steel socket cap bolt

 This part is available by special order, request a quote

Dimensions:
M8 x 80mm

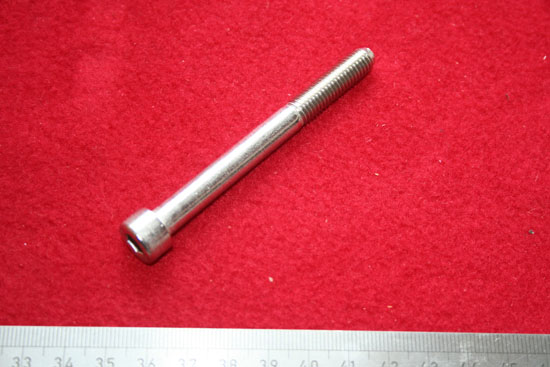

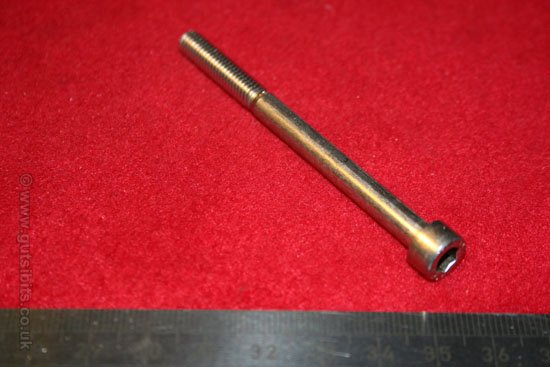

A2 stainless socket cap screw M6 x 90mm, used for long sump mount bolts where a sump extension is fitted

Dimensions:
M6 x 90mm

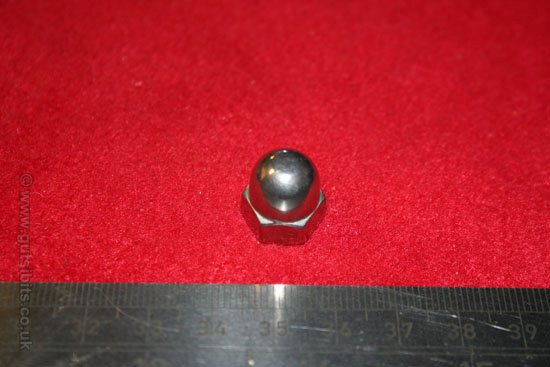

Stainless steel M8 dome head nut, used for exhaust studs, gearbox and drive box studs

Many applications including gearbox, exhaust and bevel box mounts on big twins, V7 850, V85TT and V100. Also used on small twins for bevel box mount bolts. Also known as Guzzi ref. 860651

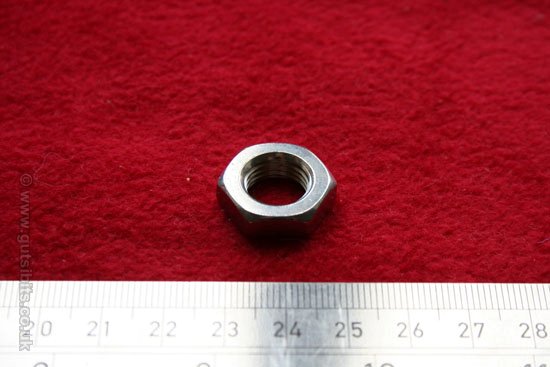

Stainless steel coarse thread M12 half nut, for use with SSA14451

M12 nut

92602512-z 92602512 GU92602512 92 60 25 12
 9260 2512 9260.2512 92.60.25.12

Dimensions:
M12 coarse
