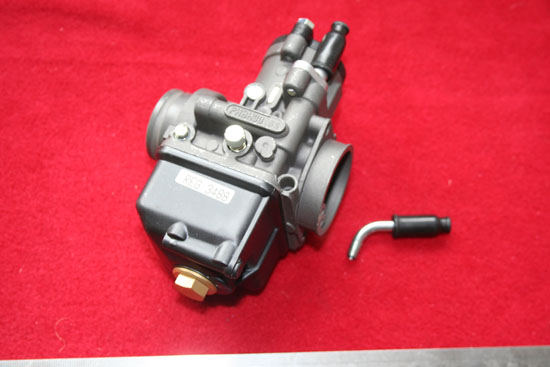

Complete right hand PHF 30 carb, supplied ready to fit with cable adjuster. Suitable as a replacement for the discontinued square slide VHB30 carb

Jetted to suit your model.
M48 x 1.25 Threaded air intake connection.
44mm Rubber sleeve type engine connection. Cable type choke mechanism fitted, lever choke can be fitted if requested when ordering. Also known as Guzzi ref. 28112644 and 28112600.
Use FUA30611 manifold kit. For cables use CAA17562 with standard plastic twinpull twistgrip or CAA20000 with Tommaselli 2C twistgrip

 This part is available by special order, request a quote

 28112610 GU28112610 28 11 26 10
 2811 2610 2811.2610 28.11.26.10

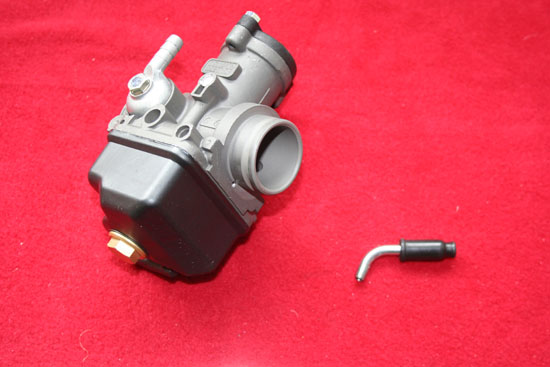

Complete left hand PHF 30 carb, supplied ready to fit with cable adjuster. Suitable as a replacement for the discontinued square slide VHB30 carb

Jetted to suit your model.
M48 x 1.25 Threaded air intake connection.
44mm Rubber sleeve type engine connection. Cable type choke mechanism fitted, lever choke can be fitted if requested when ordering. Also known as Guzzi ref. 28112645.
Use FUA30611 manifold kit. For cables use CAA17562 with standard plastic twinpull twistgrip or CAA20000 with Tommaselli 2C twistgrip

 This part is available by special order, request a quote

 28112611 GU28112611 28 11 26 11
 2811 2611 2811.2611 28.11.26.11

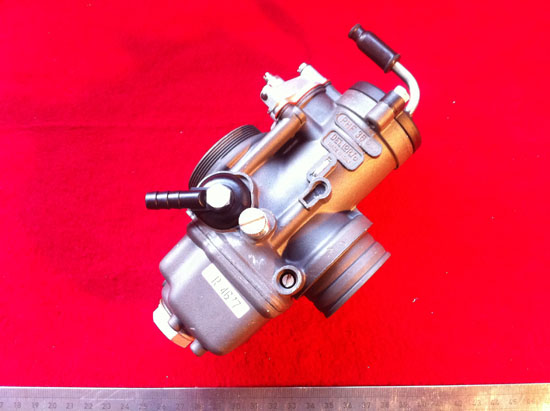

Dellorto PHF36 DS left hand carb. This is a flat top carb with 90° angle adapter for the throttle cable. Supplied with cable choke set up. Carb body is darker than earlier versions

44mm inlet manifold connection, includes accelerator pump. These can be fitted to T3, Convert, 1000 SP and T4 if FUA30611 is fitted.
Carb normally supplied in the following specification:

• 60/3 slide
• 130 main jet
• 50 idle jet
• 70 choke jet
• 8.5 gram float



   This part is available by special order, request a quote

   28112651 GU28112651 28 11 26 51
   2811 2651 2811.2651 28.11.26.51

  [ CLOSE WINDOW ]
  [ CLOSE WINDOW ]

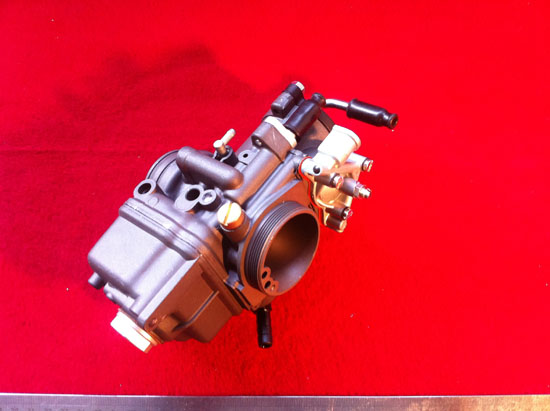

Dellorto PHF36 DD right hand carb. This is a flat top carb with 90° angle adapter for the throttle cable. Supplied with cable choke set up. Carb body is darker than earlier versions

44mm inlet manifold connection, includes accelerator pump. Supplied with single banjo connector. These can be fitted to T3, Convert, 1000 SP and T4 if FUA30611 is fitted.
Carb normally supplied in the following specification:

• 60/3 slide
• 130 main jet
• 50 idle jet
• 70 choke jet
• 8.5 gram float



   This part is available by special order, request a quote

   28112650 GU28112650 28 11 26 50
   2811 2650 2811.2650 28.11.26.50

  [ CLOSE WINDOW ]
  [ CLOSE WINDOW ]

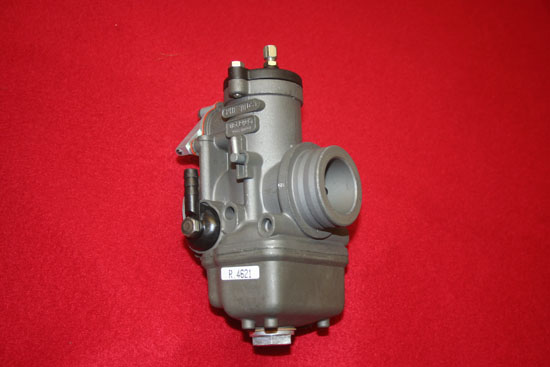

Dellorto PHM40 DS left hand carb. This is a flat top carb with 90° angle adapter for the throttle cable. Supplied with cable choke set up and jetted in Le Mans spec, other specs and be supplied on request

44mm inlet manifold connection, includes accelerator pump. Supplied with single banjo connector

 This part is available by special order, request a quote

 28112661 GU28112661 28 11 26 61
 2811 2661 2811.2661 28.11.26.61

Dellorto PHM40 DD right hand carb. This is a flat top carb with 90° angle adapter for the throttle cable. Supplied with cable choke set up and jetted in Le Mans spec, other specs and be supplied on request

44mm inlet manifold connection, includes accelerator pump. Supplied with single banjo connector

 This part is available by special order, request a quote

 28112660 GU28112660 28 11 26 60
 2811 2660 2811.2660 28.11.26.60

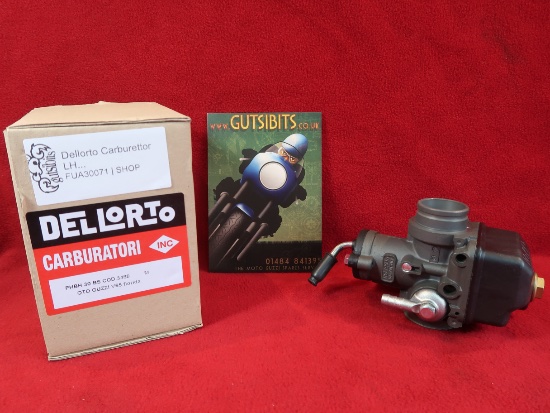

Complete left hand PHBH28 carb, supplied ready to fit with cable elbow

Jetted to suit your model.
42mm Plain air intake connection.
36mm rubber sleeve type engine connection.
Cable type choke mechanism fitted, lever choke can be fitted if requested when ordering. Also known as Guzzi ref. 300710715 and 23112671

 This part is available by special order, request a quote

 19112681 GU19112681 19 11 26 81
 1911 2681 1911.2681 19.11.26.81

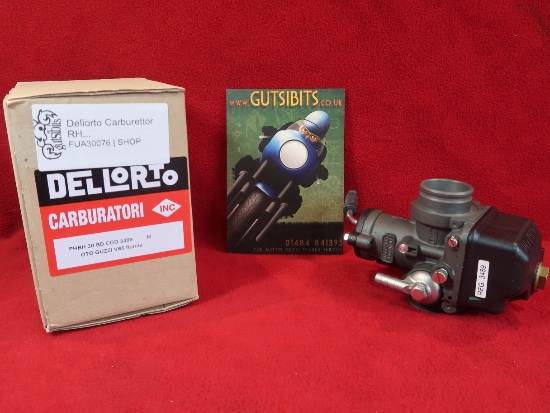

Complete right hand PHBH28 carb, supplied ready to fit with cable elbow

Jetted to suit your model.
42mm Plain air intake connection.
36mm rubber sleeve type engine connection.
Cable type choke mechanism fitted, lever choke can be fitted if requested when ordering. Also known as Guzzi ref. 300710715 and 23112671

 This part is available by special order, request a quote

 19112680 GU19112680 19 11 26 80
 1911 2680 1911.2680 19.11.26.80

Complete black left hand PHBH30 carb, supplied ready to fit with cable elbow

Jetted to suit your model.
42mm Plain air intake connection.
36mm rubber sleeve type engine connection.
Cable type choke mechanism fitted, lever choke can be fitted if requested when ordering. Also known as Guzzi ref. 300710715 and 23112671

 This part is available by special order, request a quote

300710757

Complete black right hand PHBH30 carb, supplied ready to fit with cable elbow

Jetted to suit your model.
42mm Plain air intake connection.
36mm rubber sleeve type engine connection.
Cable type choke mechanism fitted, lever choke can be fitted if requested when ordering. Also known as Guzzi ref. 300710715 and 23112671

 This part is available by special order, request a quote

300710756
