Complete 950cc big bore piston and barrel kit including gudgeon pin, piston rings and circlips. Piston is Le Man spec (higher compression) and barrel is Nikasil coated

Components for one cylinder, this kit has narrow wall barrels and is designed for 850cc crankcases which have a smaller aperture for the barrel. This kit with Italian made piston and rings is an an alternative to Gilardoni kits which can often be in short supply. See ENA20055 for similar Gilardoni alternative

Dimensions:
88mm bore

Complete 950cc piston and Nikasil coated barrel kit including gudgeon pin, piston rings and circlips. Piston is low compression. This is a 950cc upgrade for 850cc models

Components for one cylinder. The barrel is designed to fit the standard crankcase aperture on 850cc bikes so it is not necessary to modify the crankcase. For the 850 GT it may be necessary to enlarge the pushrod tunnel opening in the head gasket to suit the 850 GT valve gear placement.

18060102-z 18060102 GU18060102 18 06 01 02
 1806 0102 1806.0102 18.06.01.02

Dimensions:
88mm bore

1 litre of Eni I-Ride Special 20W-50. Eni i-Ride Special 20W-50 is a lubricating product formulated with high quality mineral oil bases, designed for four-stroke engines that are fitted in newly-manufactured motorcycles. This product is suitable for on-road and off-road driving, and is able to guarantee maximum performance even under extreme engine operating conditions.

The good detergent and dispersing properties of Eni i-Ride Special 20W-50 effectively minimize the formation of lacquers, sludge and other types of deposits. This product prevents the piston rings sticking and prevents the precipitation of the suspended substances.

The anti-wear properties of this product allow a long service life of the moving parts, reducing engine maintenance and overhaul.

Eni i-Ride Special 20W-50 has a strong resistance to the deterioration of its characteristics and in particular to the oxidative phenomena resulting from prolonged exposure in high temperature conditions and in the presence of air and other agents.

Surpasses API SJ, JASO MA and MA2. ENI oils were previously sold under the AGIP name

Dimensions:
1 litre

Brembo brake master cylinder overhaul kit for handlebar, undertank (cable operated) mounted, handlebar mounted and rear PS 12 master cylinders. Contains seals, brake grease, spring and piston. PS12 handlebar master cylinder fitted to early 850 and 1000 models. PS12 rear master cylinder fitted to Nevada 750

This seal kit is also known as 082039797. NB repair kit instructions refer to rear master cylinder. To fit this to a PS12 handlebar mounted cylinder you will need to punch the old piston out using a thin drift through the hole at the banjo bolt end of the master cylinder. Carefully note the order of the ring and washer as the piston comes out and replace with components from kit. Brembo no. 110279720. See this link for help with fitting this kit

 17659352 GU17659352 17 65 93 52
 1765 9352 1765.9352 17.65.93.52

Also fits Ducati 500 SL Pantah, Ducati 350/500 Twin GTV, Ducati 350/500 SL Pantah, Benelli 500 Quattro, Benelli 504 Sport, Benelli 250 2C, Benelli 900 Sei, Laverda Montjuic, Harris F1

Dimensions:
Solid piston 12.7mm OD x 65mm

Brembo brake master cylinder overhaul kit for overhauling foot operated PS 15 master cylinders on linked systems. Includes all seals and brake grease. We do also sell complete remote PS15 Master cylinders BRC19001

This seal kit replaces Guzzi part numbers 17659350, 66139790. Brembo ref. 110273920. This repair kit also used on some Cagiva 650 Elefant models and Benelli Sei. Some Nevada 750 models use BRA14701, check your rear master cylinder before ordering. See this link for help with fitting this kit. Supercedes front kit BRA11043
Note that this kit is only for PS15 models where the piston is retained by a ring, if your master cylinder has a circlip retaining the piston then you have a PS 16 and you will need kit BRA37232

 10273920 GU10273920 10 27 39 20
 1027 3920 1027.3920 10.27.39.20

Also fits Benelli Sei, Cagiva Elefant, Ducati 600 SL Pantah, Ducati 750/900 SS, Ducati 860/900 GTS, Ducati 900 Darmah, Ducati 900 MHR, Ducati 1000 MHR, Ducati 750 Sport (1972-1974), Laverda Jota

Dimensions:
Solid piston 15.84mm OD x 65mm

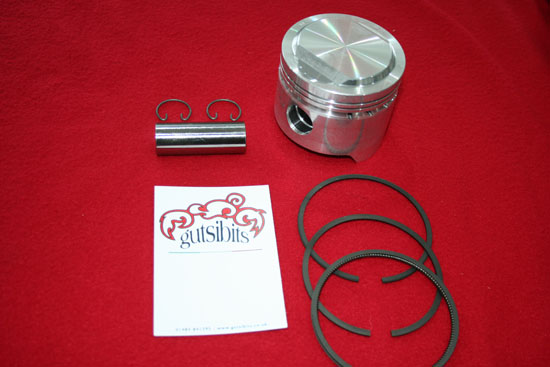

High compression 'A' spec 88mm piston kit containing aluminium piston, gudgeon pin, circlips and piston ring set. Combine with 88mm barrels to increase capacity and performance of Le Mans 1, Le Mans 2 and Le Mans 3 models. This kit can also be fitted to low compression 88mm models (e.g. 1000 SP) to increase performance

Dome Height Approx. 6.5mm

 This part is due back in stock soon, call 01484 841395 to reserve yours

If you would like to be emailed once this item is available again then click here

 28060450 GU28060450 28 06 04 50
 2806 0450 2806.0450 28.06.04.50

Dimensions:
88mm piston

High compression 'B' spec 88mm piston kit containing aluminium piston, gudgeon pin, circlips and piston ring set. Combine with 88mm barrels to increase capacity and performance of Le Mans 1, Le Mans 2 and Le Mans 3 models. This kit can also be fitted to low compression 88mm models (e.g. 1000 SP) to increase performance

Dome Height Approx. 6.5mm

 This part is due back in stock soon, call 01484 841395 to reserve yours

If you would like to be emailed once this item is available again then click here

 28060450 GU28060450 28 06 04 50
 2806 0450 2806.0450 28.06.04.50

Dimensions:
88mm piston

Standard (lower) compression 83mm piston kit containing aluminium piston, gudgeon pin, circlips and piston ring set

 Sorry, this part is no longer available.

 17060451 GU17060451 17 06 04 51
 1706 0451 1706.0451 17.06.04.51

Dimensions:
83mm piston

Standard (lower) compression 88mm piston kit containing aluminium piston, gudgeon pin, circlips and piston ring set

 This part is due back in stock soon, call 01484 841395 to reserve yours

If you would like to be emailed once this item is available again then click here

 28060400 GU28060400 28 06 04 00
 2806 0400 2806.0400 28.06.04.00

Dimensions:
88mm piston

Complete high compression 950cc piston and barrel kit including gudgeon pin, piston rings and circlips. This is a useful performance upgrade for your low compression square barrel engine, or 850 square barrel

Components for 1 cylinder

Dimensions:
88mm bore
