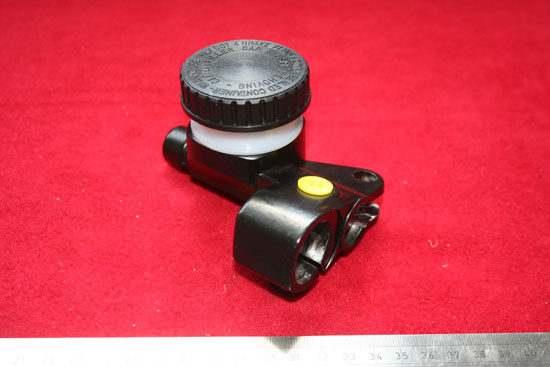

Not suitable for Brembo master cylinders. This kit fits a number of Magura MCs and may include parts that are not relevant fo your bike

Printed on high quality glossy A3 paper, ready to frame

Printed on high quality glossy A3 paper, ready to frame

Kit consists of sensor plate and pickups, magnet, ignition box, clip, screws and instructions. Suitable for all models originally fitted with points which have a mechanical advance / retard . Coils should have 4 Ohms resistance on the low tension circuit, OE coils will work OK but you may see improved results with high performance Dyna coil ELA14101

Developed from the original Piranha system, Newtronic ignitions are contact breaker replacement ignition systems covering a range of Japanese and European motorcycles from the late 1950's onwards. Using contactless, maintenance free, infra red triggering the Newtronic ignition has gained a reputation for ease of installation and effectiveness from satisfied motorcyclists around the World. The switching units include an integrated timing LED for each channel, making it quick and easy to accurately time each cylinder independently (an essential step in gaining the best performance from your engine.). The system typically consists of three main components:

1. An ADAPTOR plate which mounts the lamps supplying the beam of infra-red light. This is broken by the ROTOR as it rotates on the engine cam or crankshaft. When a beam of light is re-made as the rotor blade clears the beam the switching unit is instructed to fire the coil (please note some systems will have separate mounting plates for each lamp and will not be assembled on a single plate as shown.) In many kits these are supplied as 1 lamp per cylinder. Other kits use a wasted spark system with 1 lamp firing 2 cylinders. The adapter kit also includes the parts needed to fit the lamps around the motorcycle cam or crankshaft - usually supplied as a base plate and /or segment plates with pre-mounted lamps.
2. A ROTOR which fits on the bike cam or crankshaft and makes and breaks the lamps infrared beam when the coil is to be fired. The rotor may be made of metal or a heat and solvent resistant plastic.
3. A SWITCHING UNIT which collects coil firing instructions from the rotor traversing through the lamps and fires the coil. The switching units are supplied positive or negative earth depending on the bike configuration and have a separate switching channel for each lamp in the Adaptation Kit. 12V and 6V versions are also available especially for earlier bikes. The switching unit has an integral timing light for each coil and is fully compatible with existing systems to the older design. It is also a direct replacement for Piranha switching units.
4. An INSTALLATION WIRING LOOM is supplied with each kit, tailored to the original bike loom dimensions, connectors and wire colours for a quick, easy and professional looking installation.

Kit consists of sensor plate and pickups, magnet, ignition box, clip, screws and instructions. Suitable for all models originally fitted with points which have a mechanical advance / retard . Can also be fitted to Strada 1000, Spada 3, Cali 3 etc... if the distributor is swapped for a points type part with advance / retard mechanism. Coils should have 4 Ohms resistance on the low tension circuit, OE coils will work OK but you may see improved results with high performance Dyna coil ELA14101

Developed from the original Piranha system, Newtronic ignitions are contact breaker replacement ignition systems covering a range of Japanese and European motorcycles from the late 1950's onwards. Using contactless, maintenance free, infra red triggering the Newtronic ignition has gained a reputation for ease of installation and effectiveness from satisfied motorcyclists around the World. The switching units include an integrated timing LED for each channel, making it quick and easy to accurately time each cylinder independently (an essential step in gaining the best performance from your engine.). The system typically consists of three main components:

1. An ADAPTOR plate which mounts the lamps supplying the beam of infra-red light. This is broken by the ROTOR as it rotates on the engine cam or crankshaft. When a beam of light is re-made as the rotor blade clears the beam the switching unit is instructed to fire the coil (please note some systems will have separate mounting plates for each lamp and will not be assembled on a single plate as shown.) In many kits these are supplied as 1 lamp per cylinder. Other kits use a wasted spark system with 1 lamp firing 2 cylinders. The adapter kit also includes the parts needed to fit the lamps around the motorcycle cam or crankshaft - usually supplied as a base plate and /or segment plates with pre-mounted lamps.
2. A ROTOR which fits on the bike cam or crankshaft and makes and breaks the lamps infrared beam when the coil is to be fired. The rotor may be made of metal or a heat and solvent resistant plastic.
3. A SWITCHING UNIT which collects coil firing instructions from the rotor traversing through the lamps and fires the coil. The switching units are supplied positive or negative earth depending on the bike configuration and have a separate switching channel for each lamp in the Adaptation Kit. 12V and 6V versions are also available especially for earlier bikes. The switching unit has an integral timing light for each coil and is fully compatible with existing systems to the older design. It is also a direct replacement for Piranha switching units.
4. An INSTALLATION WIRING LOOM is supplied with each kit, tailored to the original bike loom dimensions, connectors and wire colours for a quick, easy and professional looking installation.

Kit consists of sensor plate and pickups, magnet, screws, wiring and instructions. Suitable for all models originally fitted with points. This kit for small twins does not have a separate ignition module, it connects directly to the coils. See ELA19118 for a less expensive alternative

These can be fitted over the flange at the top end of Le Mans 1 and 2 down pipes

Screen has a dark tinted finish and mounts to headlight. Screens available without fixings if you wish to fabricate your own brackets, or if you wish to replace a damaged screen- see FAA10012
To simplify installation always mount a screen on to the mounting brackets before mounting the brackets on the bike. Does not fit Night Pack models
