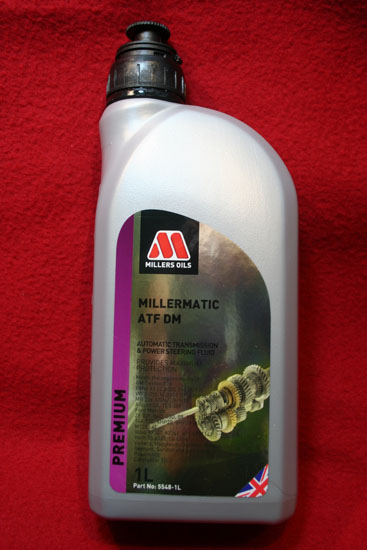

1 litre of Millers ATF, used for fork lubrication and as hydraulic fluid for auto drive on Convert

1.7l required for Convert torque converter circuit (oil change due every 18000 miles). 80ml required per side for fork lubrication on big twins equipped with cartridge fork dampers (e.g. Le Mans 2, T3, 1000 SP etc...), 70ml for required per side for fork lubrication on small twins and Cali 1100 equipped with cartridge fork dampers (e.g. V50 II, V35 etc...)
OIA02075 can be used as a substitute for ATF in fork rebuilds.
Please note this part CANNOT be posted outside of the UK mainland area

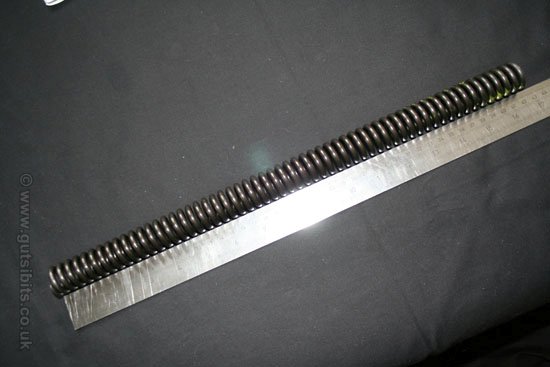

Fork spring

See OIA01001 for fork oil

 This part is available by special order, request a quote

14526600-z 14526600 GU14526600 14 52 66 00
 1452 6600 1452.6600 14.52.66.00

Dimensions:
25mm OD x 420mm

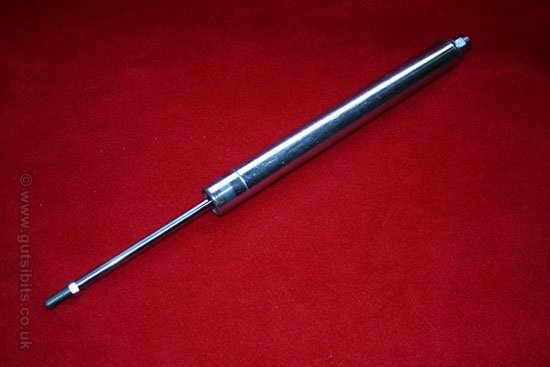

Sebac fork damper, standard damping rate

See OIA01001 for ATF (used in place of fork oil)

14526407-z 14526407 GU14526407 14 52 64 07
 1452 6407 1452.6407 14.52.64.07

Fork spring

Also known as Guzzi ref. 19526960 See OIA01001 for fork oil

 Sorry, this part is no longer available.

19526900-z 19526900 GU19526900 19 52 69 00
 1952 6900 1952.6900 19.52.69.00

Dimensions:
340mm uncompressed length

Sebac fork damper, standard damping rate

Also known as Guzzi ref. 18526460. See OIA01001 for ATF (used in place of fork oil)

14526455-z 14526455 GU14526455 14 52 64 55
 1452 6455 1452.6455 14.52.64.55

Also fits Benelli Sei 900

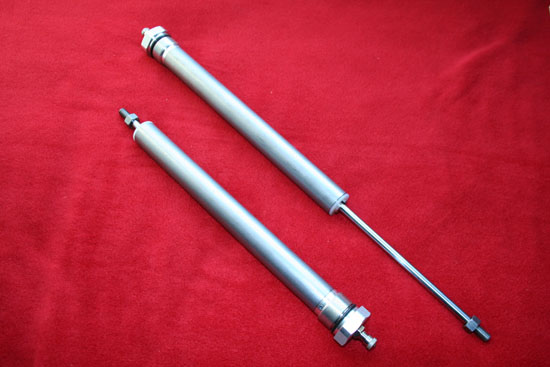

Pair of FAC air assisted fork dampers. These are a major suspension upgrade for the front end of your bike and work best when combined with progressive fork springs SUA14601

Pressurise to between 7 and 29 PSI. See OIA01001 for ATF (used in place of fork oil)

 This part is available by special order, request a quote

19526460-z 19526460 GU19526460 19 52 64 60
 1952 6460 1952.6460 19.52.64.60

Pair of FAC fork dampers. These are a major suspension upgrade for the front end of your bike and work best when combined with progressive fork springs SUA19601

Pressurise to between 7 and 29 PSI. See OIA01001 for ATF (used in place of fork oil)

 This part is available by special order, request a quote

19526480-z 19526480 GU19526480 19 52 64 80
 1952 6480 1952.6480 19.52.64.80

Pair of FAC fork dampers

Pressurise to between 7 and 29 PSI. See OIA01001 for ATF (used in place of fork oil)

 This part is available by special order, request a quote

27526420-z 27526420 GU27526420 27 52 64 20
 2752 6420 2752.6420 27.52.64.20

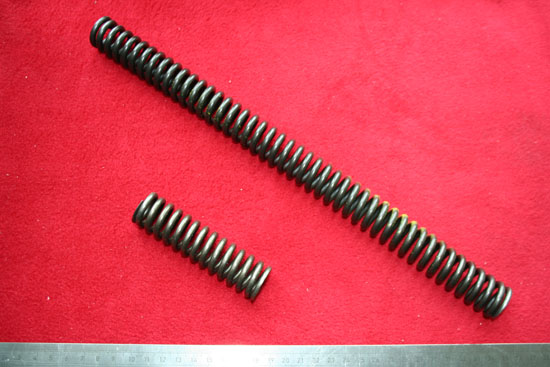

Two part fork spring (achieves two spring rates for a better ride)

These are heavier duty than the early T3 fork springs. You will need 2 x SUA18960 for a set of forks. See OIA01001 for fork oil

 This part is due back in stock soon, call 01484 841395 to reserve yours

If you would like to be emailed once this item is available again then click here

18526960-z 18526960 GU18526960 18 52 69 60
 1852 6960 1852.6960 18.52.69.60

Also fits Benelli Sei 900

Dimensions:
350mm + 96mm length

**SALE** Save £50 on these fork dampers!

Pair of FAC air assisted fork dampers. These are a major suspension upgrade for the front end of your bike and work best when combined with progressive fork springs

Stainless steel damper rod and alloy top nut, supplied with fork top O ring. Pressurise to between 7 and 29 PSI. See OIA01001 for ATF (used in place of fork oil)

 28526440 GU28526440 28 52 64 40
 2852 6440 2852.6440 28.52.64.40
