Stainless steel fasteners kit for VHB carb models without sump extension.This kit contains nuts, bolts and washers for the following: rocker covers, timing cover, gearbox bell housing, alternator cover, gearbox rear cover, neutral switch, drive box to swingarm, starter motor, head studs, exhaust flanges, inlet manifolds and sump. Just what you need to brighten up your Guzzi and ensure nuts and bolts don't seize on your bike

This engine bolt kit contains appropriate M6, M8, M10 socket cap and hex head bolts, nuts and washers. 145 pieces. To ensure you can easily release these fasteners in years to come we recommend wiping each fastener with copper grease (OIA11070). You may also require a replacement front engine bolt kit in stainless (SSA14450) or distributor screws (SSA05025 and SSA04008)

 This part is due back in stock soon, call 01484 841395 to reserve yours

M6 flat stainless steel washer

Dimensions:
M6 x 12mm x 0.75mm

M5 screw for attaching points cover

2 required per distributor. Can be used in place of hex bolt Guzzi ref. 98082225

Dimensions:
M5 x 25mm

A2 M6 x 35mm stainless steel socket cap screw used for timing cover,and gearbox cover on big twins. Also use for fitting our billet rocker cover protectors (ACA17941 / ACA14940)

Also used in place for Guzzi ref. 98680335 or 884039

 98690335 GU98690335 98 69 03 35
 9869 0335 9869.0335 98.69.03.35

Dimensions:
M6 x 35mm

M4 screw for attaching points to backplate

12 required per distributor

Dimensions:
M4 x 8mm

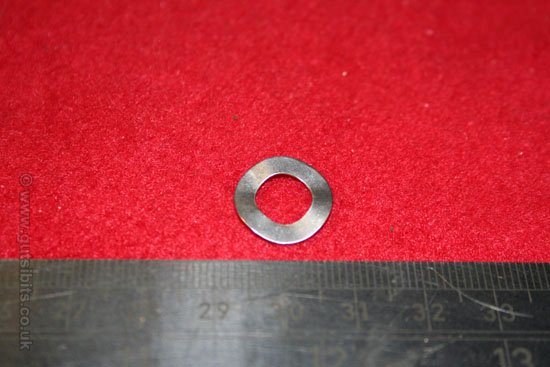

M6 wavy washer in stainless steel

Also known as a crinkle washer Guzzi ref. 61013800 (only for frame and chassis applications)

Dimensions:
M6 x 12mm

A2 stainless socket cap screw M6 x 55, used for long sump bolt on 850/1000 models where there isn't a sump extension, but used for shorter sump bolt where a sump extension is fitted. Can be used in place of Guzzi ref. AP8150045

14 required if used with sump extension, 4 if used without sump extension

Dimensions:
M6 x 55mm

A2 stainless socket cap screw M6 x 30

Used for alternator cover screws on 850/1000 models and gearbox case to bellhousing on V50, V35. Also known as Guzzi ref. 98682330, 98310630, 98620330

Dimensions:
M6 x 30mm

M12 wavy stainless steel washer

Also known as a crinkle washer. Used for brake and gear lever pivots on Tonti frame models

Dimensions:
M12 x 22mm x 1mm

A2 stainless socket cap screw M6 x 90mm, used for long sump mount bolts where a sump extension is fitted

Dimensions:
M6 x 90mm
