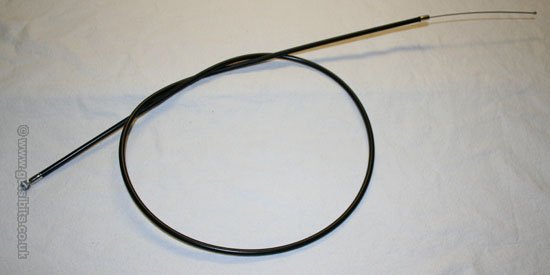

One piece throttle cable for pre 1988 models. For models with standard high top PHM pumper carbs

One cable per carb. We advise you to measure your existing cable before ordering in case you have a non standard set up.

 28117560 GU28117560 28 11 75 60
 2811 7560 2811.7560 28.11.75.60

Dimensions:
Inner length 1080mm, outer length 968mm

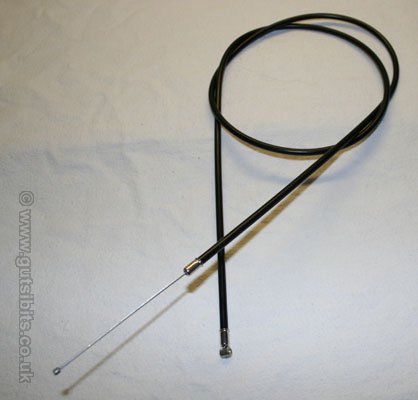

Throttle cable, runs from twistgrip to carb

We advise you to measure your existing cable before ordering in case you have a non standard set up.

 19117535 GU19117535 19 11 75 35
 1911 7535 1911.7535 19.11.75.35

Dimensions:
920mm outer, 1010mm inner

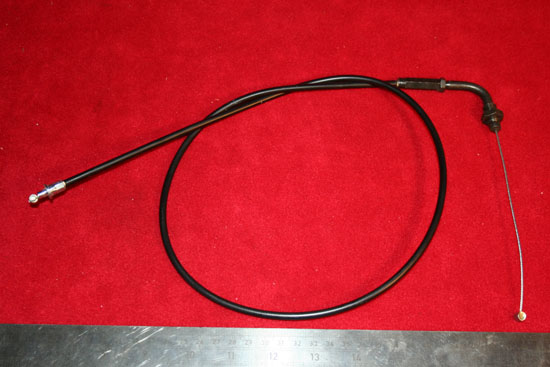

Throttle cable

Ball end at twistgrip

10117500-z 10117500 GU10117500 10 11 75 00
 1011 7500 1011.7500 10.11.75.00

Dimensions:
Inner length 946mm, outer length 869mm

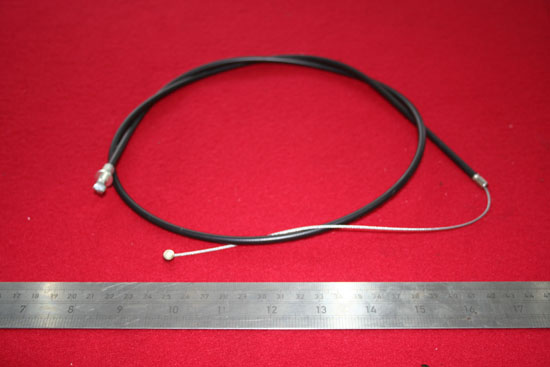

Throttle cable

We advise you to measure your existing cable before ordering in case you have a non standard set up.

19117545-z 19117545 GU19117545 19 11 75 45
 1911 7545 1911.7545 19.11.75.45

Dimensions:
1112mm outer length, 95mm free length, 5.7mm barrel nipple, 2.7mm barrel nipple

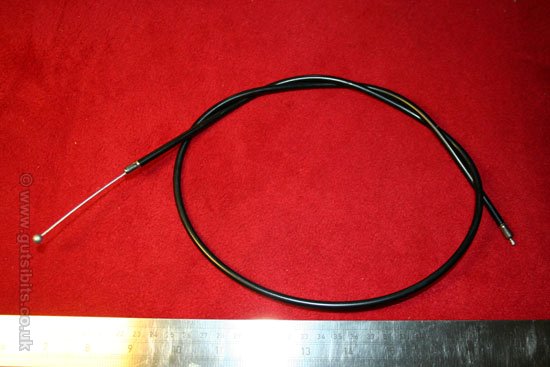

Throttle cable

We advise you to measure your existing cable before ordering in case you have a non standard set up.

 19117575 GU19117575 19 11 75 75
 1911 7575 1911.7575 19.11.75.75

Dimensions:
920mm outer length, 105mm free length. 5.7mm barrel nipple, 2.7mm barrel nipple

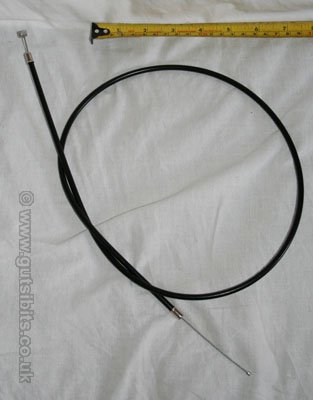

Thottle cable, runs from twistgrip to carb

We advise you to measure your existing cable before ordering in case you have a non standard set up.

27117520-z 27117520 GU27117520 27 11 75 20
 2711 7520 2711.7520 27.11.75.20

Dimensions:
1010mm outer length, 110mm free length, 5.7mm barrel nipple, 2.7mm barrel nipple

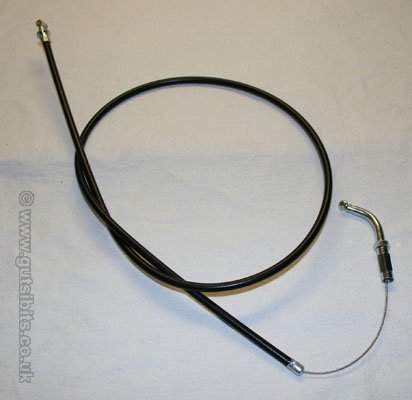

Throttle cable

Only suitable for pre 1988 model SP II and pre 1985 T5. We advise you to measure your existing cable before ordering in case you have a non standard set up.

 28117500 GU28117500 28 11 75 00
 2811 7500 2811.7500 28.11.75.00

Dimensions:
1018mm outer length, 131mm free length, 5.7mm barrel nipple, 2.7mm barrel nipple

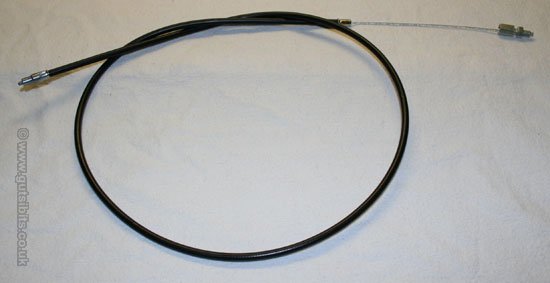

Throttle cable

Only one cable is required. We advise you to measure your existing cable before ordering in case you have a non standard set up

 30117500 GU30117500 30 11 75 00
 3011 7500 3011.7500 30.11.75.00

Dimensions:
945mm outer length, 148mm free length, 5.7mm barrel nipple, 5.7mm barrel nipple

Throttle cable, full length cable for models with Domino switchgear

Supercedes Guzzi ref. 30117711. We advise you to measure your existing cable before ordering in case you have a non standard set up.

 30117710 GU30117710 30 11 77 10
 3011 7710 3011.7710 30.11.77.10

Dimensions:
900mm outer length, 130mm free length, 2.9mm barrel nipple, 2.8mm barrel nipple

Throttle cable

Only one cable is required. We advise you to measure your existing cable before ordering in case you have a non standard set up

 02117500 GU02117500 02 11 75 00
 0211 7500 0211.7500 02.11.75.00

Dimensions:
987mm outer, 220mm free length, nipples 6mm wide
