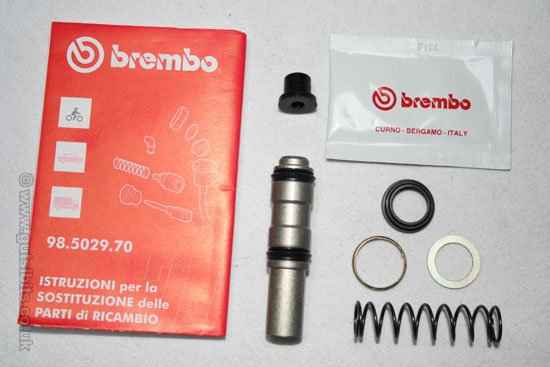

Brembo brake master cylinder overhaul kit for handlebar, undertank (cable operated) mounted, handlebar mounted and rear PS 12 master cylinders. Contains seals, brake grease, spring and piston. PS12 handlebar master cylinder fitted to early 850 and 1000 models. PS12 rear master cylinder fitted to Nevada 750

This seal kit is also known as 082039797. NB repair kit instructions refer to rear master cylinder. To fit this to a PS12 handlebar mounted cylinder you will need to punch the old piston out using a thin drift through the hole at the banjo bolt end of the master cylinder. Carefully note the order of the ring and washer as the piston comes out and replace with components from kit. Brembo no. 110279720. See this link for help with fitting this kit

 Availability varies on this part, call us to check availability

If you would like to be emailed once this item is available again then click here

 17659352 GU17659352 17 65 93 52
 1765 9352 1765.9352 17.65.93.52

Also fits Ducati 500 SL Pantah, Ducati 350/500 Twin GTV, Ducati 350/500 SL Pantah, Benelli 500 Quattro, Benelli 504 Sport, Benelli 250 2C, Benelli 900 Sei, Laverda Montjuic, Harris F1

Dimensions:
Solid piston 12.7mm OD x 65mm

Black PS 12 master cylinder (original round type). Supplied without lever. See BRA28278 for an alternative master cylinder.

Also known as Guzzi ref. 28660178, uses seal kit BRA14701 and lever BRA14605 (or BRA17606). Replaces Guzzi refs. 17660250, 17660252, 14660200, 082054335. Can be used to upgrade cable operated front master cylinder on V35 I, V50 I and V50 II models. also suitable for 750S

 This part is due back in stock soon, call 01484 841395 to reserve yours

If you would like to be emailed once this item is available again then click here

 17660253 GU17660253 17 66 02 53
 1766 0253 1766.0253 17.66.02.53

Also fits Ducati 500 SL Pantah, Ducati 350/500 Twin GTV, Ducati 350/500 SL Pantah, Benelli 500 Quattro, Benelli 504 Sport, Benelli 250 2C, Benelli 900 Sei

Brembo brake master cylinder overhaul kit for overhauling foot operated PS 15 master cylinders on linked systems. Includes all seals and brake grease

This seal kit replaces Guzzi part numbers 17659350, 66139790. Brembo ref. 110273920. This repair kit also used on some Cagiva 650 Elefant models and Benelli Sei. Some Nevada 750 models use BRA14701, check your rear master cylinder before ordering. See this link for help with fitting this kit. Supercedes front kit BRA11043
Note that this kit is only for PS15 models where the piston is retained by a ring, if your master cylinder has a circlip retaining the piston then you have a PS 16 and you will need kit BRA37232

 Availability varies on this part, call us to check availability

If you would like to be emailed once this item is available again then click here

 10273920 GU10273920 10 27 39 20
 1027 3920 1027.3920 10.27.39.20

Also fits Benelli Sei, Cagiva Elefant, Ducati 600 SL Pantah, Ducati 750/900 SS, Ducati 860/900 GTS, Ducati 900 Darmah, Ducati 900 MHR, Ducati 1000 MHR, Ducati 750 Sport (1972-1974), Laverda Jota

Dimensions:
Solid piston 15.84mm OD x 65mm
