The Shop
Search results for  "ELA00001" for all models
Filter Results
Filter search results

7 Results -

Sort by Title
Sort by Price
HT Lead Coil Connector Crimp Type
ELA00001 Universal Part
click to view full size

Dimensions:
20mm long x 8mm OD

Crimp on HT lead connector, also used on loop frame distributors

We recommend checking your bike uses this type of connector before purchasing

More than 5 in stock

£1.00

INC VAT

£0.83  EX VAT

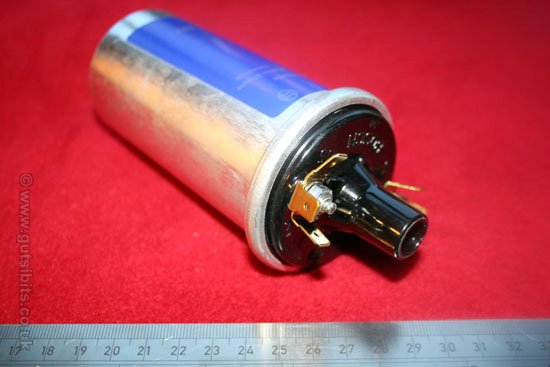

Ignition Coil 12V
ELA26504 Fits Moto Guzzi V7 700, 850 GT, V7 Special (1969-1971), Nuovo Falcone
click to view full size

Dimensions:
64mm x 145mm overall

12 volt single output ignition coil (lead to distributor)

Push fit HT lead, see ELA00001 for crimp on HT lead connector. Supplied without coil clamp

 26716504 GU26716504 26 71 65 04
 2671 6504 2671.6504 26.71.65.04

£41.90

INC VAT

£34.92  EX VAT

This item is normally back in stock within a few days. If you would like to reserve this item please call us on 01484 841395. If you would like to be emailed once this item is available again then email us
Please call or enquire to check availability of this part

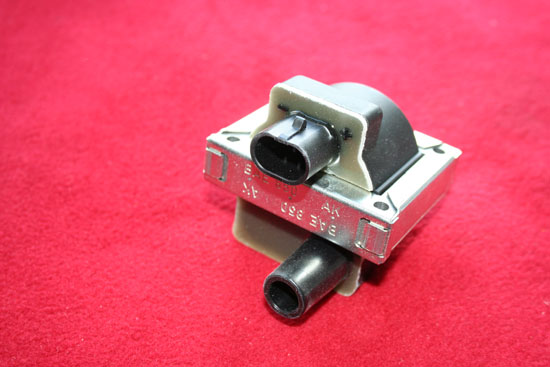

Ignition Coil 12V Single Output
ELA30716 Fits Moto Guzzi 1100 Sport ALL, 1200 Sport (4 valves per cylinder), Stelvio 1200, Breva 750, Cali 3 IE, Cali 1100 (1994-1997), Cali EV ALL, Cali Jackal, Cali Stone, Centauro, Daytona ALL, V7 Classic, V11 Sport ALL, Stelvio, Quota ALL, Norge (2010-2017), Nevada 750 (Digiplex ignition), Strada 750 (Digiplex ignition), Strada 1000, Griso 1200, 1000S (Digiplex ignition)
click to view full size

12 volt coil used on late Guzzis

Sometimes referred to as the 'square coil', two required per bike. See ELA00001 for crimp on HT lead connector

1 in stock

 30716500 GU30716500 30 71 65 00
 3071 6500 3071.6500 30.71.65.00

£97.00

INC VAT

£80.83  EX VAT

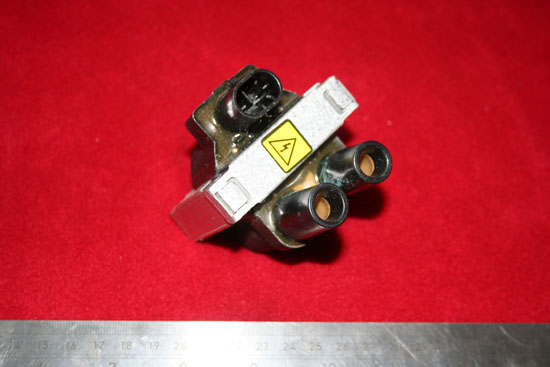

Ignition Coil 12V Twin Lead
ELA05530 Fits Moto Guzzi Norge 850, Norge 1200 (2v/cyl), Griso 850, Griso 1100, 1200 Sport (2v/cyl), Breva 1100, Breva 1200, Bellagio
click to view full size

Dimensions:
54mm and 44mm centres on mountings

Twin output 12 volt coil used on late Guzzis

Sometimes referred to as the 'square coil', two required per bike. See ELA00001 for crimp on HT lead connector

 05716530 GU05716530 05 71 65 30
 0571 6530 0571.6530 05.71.65.30

£49.70

INC VAT

£41.42  EX VAT

This item is currently available by special order, if you would like to order this item please call us on 01484 841395 or email us. It is normally available within one to three weeks of your order
Please call or enquire to check availability of this part

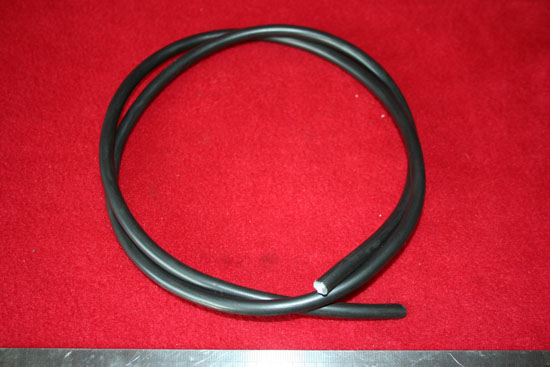

HT Lead Copper Core
ELA18135 Universal Part
click to view full size

Dimensions:
100cm

One metre of copper core HT lead, this is superior to the more commonly available carbon core lead

Sold by the metre, one metre is enough for two leads on most models with coils under the fuel tank. For models with coils under the side panel you will need two metres. See ELA14715 and ELA14714 for plug caps and ELA20001 for coil screw cap. See ELA00001 for crimp on HT lead connector

More than 5 in stock

£6.40

INC VAT

£5.33  EX VAT

Performance Ignition Coil 12 volt Dyna Single Output Pair
ELA14101 Fits Moto Guzzi V35 II (Late Models), Imola, V50 3, Monza, V65 ALL, G5, Convert, Cali 2, Cali 3, Le Mans 1, Le Mans 2, Le Mans 3, Le Mans 1000, Mille GT, 1000 SP, SP II, Spada 3, 850T, T3, T4, T5, V7 Sport
click to view full size

Dimensions:
90mm and 100mm mounting centres

Pair of performance Dyna 12 volt 5 ohm single lead ignition coils with angled HT lead socket. These are a cooler running coil that offer improved starting and performance

Dyna Performance Replacment Coils are high tech, top quality coils, designed for maximum performance. They produce spark voltages in excess of 30,000 volts and spark energies second to none. Dynatek coils are available in a wide variety of resistances and output configurations to allow easy replacement of stock coils. Dynatek coils work with factory electronic ignitions, points, and aftermarket ignitions. These are a different size and shape from the original coils so you will need to fabricate a suitable coil mount.
Individual coils available by special order, call us for details. See ELA00001 for crimp on HT lead connector

1471650

£167.00

INC VAT

£139.17  EX VAT

This item is normally back in stock within 1-3 weeks, if you need it more quickly please call us on 01484 841395. If you would like to be emailed once this item is available again then email us
Please call or enquire to check availability of this part
Performance Ignition Coil 12 volt Dyna Dual Output Pair
ELA14505 Fits Moto Guzzi G5, Convert, Cali 2, Cali 3, Le Mans 1, Le Mans 2, Le Mans 3, Le Mans 1000, Mille GT, Spada ALL, T3, T4, T5, V7 Sport
click to view full size

Dimensions:
90mm and 100mm mounting centres

Pair of high performance Dyna 12 volt 5 ohm dual lead ignition coils with angled HT lead socket. These are a performance coil which offer improved starting and performance for twin plugged models

Dyna Performance Replacment twin plug coils are high tech, top quality coils, designed for maximum performance. They produce spark voltages in excess of 30,000 volts and spark energies second to none. Dynatek coils are available in a wide variety of resistances and output configurations to allow easy replacement of stock coils. Dynatek coils work with factory electronic ignitions, points, and aftermarket ignitions. These are a different size and shape from the original coils so you will need to fabricate a suitable coil mount. Guzziology recommends using electronic ignition with these coils as points may not be up to triggering these coils. See ELA00001 for crimp on HT lead connector.
Individual coils available by special order, call us for details

1471650

£167.00

INC VAT

£139.17  EX VAT

This item is currently available by special order, if you would like to order this item please call us on 01484 841395 or email us. It is normally available within one to three weeks of your order
Please call or enquire to check availability of this part
