Complete sump kit which moves the oil filter out from within the sump to a recess under the sump. This simpifies and speeds up oil changes because the sump no longer needs to be removed. Oil cooling is also improved because oil will cool through the body of the filter. The complete sump kit is a simple fit that will speed up oil changes and reduce the risk of stripping crankcase bolts through repeated sump removal. It is very similar to the arrangement on modern CARC models. The kit consists of:

1. Deep sump casting (82mm deep) with all oil ways. Uses oil filter SIA14530
   Replaces sump extension ENA14002. Finished in black this is a great upgrade for your Guzzi

   Depending on model you may need a longer dipstick e.g. ENA28495. You can calibrate the sump by adding 3l of oil and marking the position on the dipstick. Note that you need to transfer your oil pressure relief valve and the intake screen from your existing sump into this new one. Note also that the stamped steel covers on some oil pressure relief valves flare wider than others so you may need to make a little clearance in order to get the threads started. Also available at additional cost in black to special order

    This part is available by special order, request a quote

   Dimensions:
   82mm thick

   [ CLOSE WINDOW ]
   [ CLOSE WINDOW ]

Complete sump kit which moves the oil filter out from within the sump to a recess under the sump. This simplifies and speeds up oil changes because the sump no longer needs to be removed. Oil cooling is also improved because oil will cool through the body of the filter. The complete sump kit is a simple fit that will speed up oil changes and reduce the risk of stripping crankcase bolts through repeated sump removal. It is very similar to the arrangement on modern CARC models. Replaces sump extension ENA14002. Finished in silver this is a great upgrade for your Guzzi. Uses oil filter SIA14530

Depending on model you may need a longer dipstick e.g. ENA28495. You can calibrate the sump by adding 3l of oil and marking the position on the dipstick. Note that you need to transfer your oil pressure relief valve and the intake screen from your existing sump into this new one. Note also that the stamped steel covers on some oil pressure relief valves flare wider than others so you may need to make a little clearance in order to get the threads started. Also available at additional cost in black by special order - ENA14006

 This part is available by special order, request a quote

Dimensions:
82mm thick

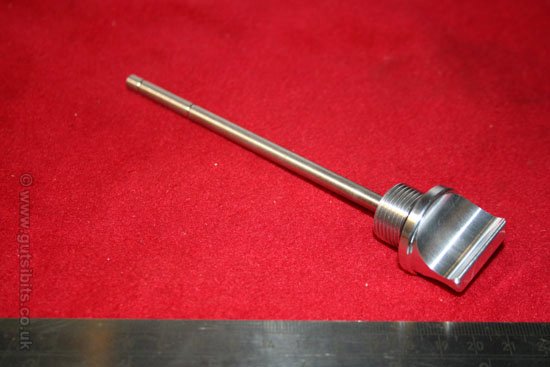

Long screw in polished alloy dipstick with O ring for models with a sump extension but without fairing lowers

 This part is due back in stock soon, call 01484 841395 to reserve yours

If you would like to be emailed once this item is available again then click here

28004950-z 28004950 GU28004950 28 00 49 50
 2800 4950 2800.4950 28.00.49.50

Dimensions:
107mm gasket surface to high mark
