Search results for "HAA10850" for all models

Filter Results

8 Results -

Sort by Title

Sort by Price

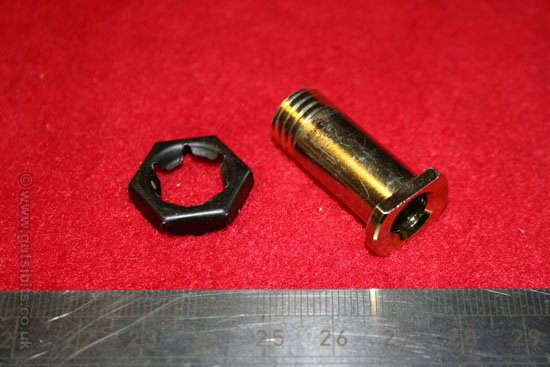

Pivot Pin and Nut Clutch or Brake Lever

HAA10850 Fits 1100 Sport ALL, Cali 3, Cali 1100, Cali EV, Centauro, Daytona, V11 Sport, Spada 3, Nevada ALL, Quota 1100

Pivot bolt and special nut for Brembo PS 13 and PS 16 master cylinders, also used for some hydraulic clutch lever pivot bolts

Not for early Cali 1100s fitted with solid brake lever pivot pins. Brembo ref. 110279850

this part is due in stock from our Italian suppliers This part is due back in stock soon, call 01484 841395 to reserve yours

If you would like to be emailed once this item is available again then click here

10279850 GU10279850 10 27 98 50
1027 9850 1027.9850 10.27.98.50

Dimensions:
12mm pivot OD

£7.80

INC VAT

£6.50 EX VAT this is the price you will pay if you are ordering from outside the UK

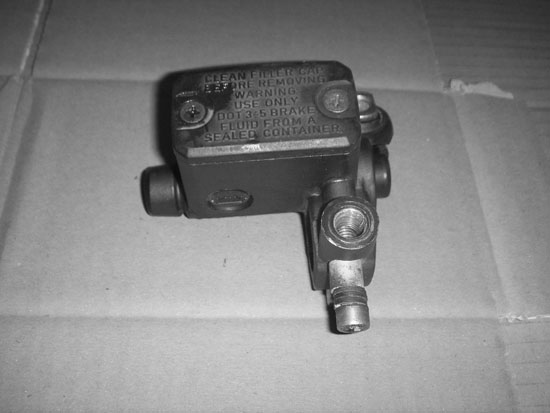

Used PS16 Handlebar Master Cylinder

BRG30125 Fits 850T, 750S

Example photo for illustration only

Brembo PS 16 handlebar mounted front master cylinder. This replaces the PS 15 handlebar mounted master cylinder which is no longer available. The PS16 has a small rectangular fluid reservoir. Use this master cylinder if you are de-linking your brakes to ensure the correct piston operating ratio (if you retain the original PS12 or PS13 your front brakes are likely to feel 'spongy')

Type with pivot bolt HAA10850

Sorry this part cannot be shipped to the US or Canada

6 month warranty on this part

We need to check stock We need to check whether we have stock of this part, call us to check availability

30660125 GU30660125 30 66 01 25
3066 0125 3066.0125 30.66.01.25

Prices from

£48.00 - £88.20

inc VAT dependent on condition

Brake Lever Black

BRA01640 Fits V11 Sport, Centauro

Black brake lever, chrome 4 position span adjustment

See HAA10850 for lever pivot pin

1 in stock

01605640-z 01605640 GU01605640 01 60 56 40
0160 5640 0160.5640 01.60.56.40

Dimensions:
12mm mount hole

£39.00

INC VAT

£32.50 EX VAT this is the price you will pay if you are ordering from outside the UK

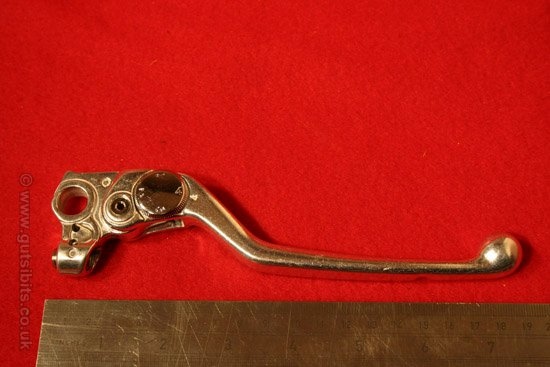

Brake Lever Aluminium

BRA01630 Fits V11 Sport, Centauro, 1100 Sport ALL

Bright aluminium finish brake lever, 4 position span adjustment

See HAA10850 for lever pivot pin

This part is due back in stock soon, call 01484 841395 to reserve yours

If you would like to be emailed once this item is available again then click here

01605630-z 01605630 GU01605630 01 60 56 30
0160 5630 0160.5630 01.60.56.30

Also fits Aprilia RS250

Dimensions:
12mm mount hole

£36.00

INC VAT

£30.00 EX VAT this is the price you will pay if you are ordering from outside the UK

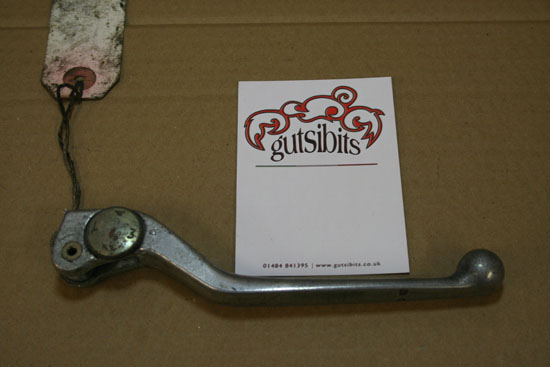

Used Brake Lever Aluminium

BRG01630 Fits V11 Sport, Centauro, 1100 Sport ALL

Example photo for illustration only

Bright aluminium finish brake lever, 4 position span adjustment

See HAA10850 for lever pivot pin

Sorry this part cannot be shipped to the US or Canada

6 month warranty on this part

We need to check stock We need to check whether we have stock of this part, call us to check availability

01605630 GU01605630 01 60 56 30
0160 5630 0160.5630 01.60.56.30

Also fits Aprilia RS250

Dimensions:
12mm mount hole

£18.00

INC VAT

£15.00 EX VAT this is the price you will pay if you are ordering from outside the UK

Brake Lever Polished Alloy

BRA30605 Fits Cali 1100 (1994-1998), Cali EV (1997-2002), Nevada ALL, Quota 1100, V75, 750X, T5 Police, Cali Jackal (1999-2001), Strada 1000, V75 PA

Polished adjustable aluminium brake lever for PS 11, PS 13 and PS 16 master cylinders

Also known as Guzzi ref. 10270652. See HAA10850 for lever pivot pin and BRA01630 for span adjustable alternative lever

this part is due in stock from our Italian suppliers This part is due back in stock soon, call 01484 841395 to reserve yours

If you would like to be emailed once this item is available again then click here

30605680-z 30605680 GU30605680 30 60 56 80
3060 5680 3060.5680 30.60.56.80

Dimensions:
12mm internal diameter mounting hole

£29.00

INC VAT

£24.17 EX VAT this is the price you will pay if you are ordering from outside the UK

Used Brake Lever Front PS11, PS13 & PS16

BRG28657 Fits V65 Florida, 750 Targa, Strada 750, V75 PA, Cali 3, Mille GT, Spada 3, 1000S, Le Mans 1000, Quota 1000

Example photo for illustration only

Adjustable front black brake lever for PS 11, PS 13 and PS 16 rectangular master cylinder.

Also known as Guzzi ref. 28605678. See BRA01630 or BRA01640 for a span adjustable alternative and HAA10850 for lever pivot pin

Sorry this part cannot be shipped to the US or Canada

6 month warranty on this part

part in stock 1 in stock, request a quote

10270640 GU10270640 10 27 06 40
1027 0640 1027.0640 10.27.06.40

Dimensions:
11.6mm internal diameter mounting hole

£14.00

INC VAT

£11.67 EX VAT this is the price you will pay if you are ordering from outside the UK

Brake Lever Front PS11, PS13 & PS16

BRA28657 Fits V65 Florida, 750 Targa, Strada 750, V75 PA, Cali 3, Mille GT, Spada 3, 1000S, Le Mans 1000, Quota 1000

Adjustable front black brake lever for PS 11, PS 13 and PS 16 rectangular master cylinder.

Also known as Guzzi ref. 28605678. See BRA01630 or BRA01640 for a span adjustable alternative and HAA10850 for lever pivot pin

this part is due in stock from our Italian suppliers This part is due back in stock soon, call 01484 841395 to reserve yours

If you would like to be emailed once this item is available again then click here

10270640-z 10270640 GU10270640 10 27 06 40
1027 0640 1027.0640 10.27.06.40

Dimensions:
11.6mm internal diameter mounting hole

£28.00

INC VAT

£23.33 EX VAT this is the price you will pay if you are ordering from outside the UK
