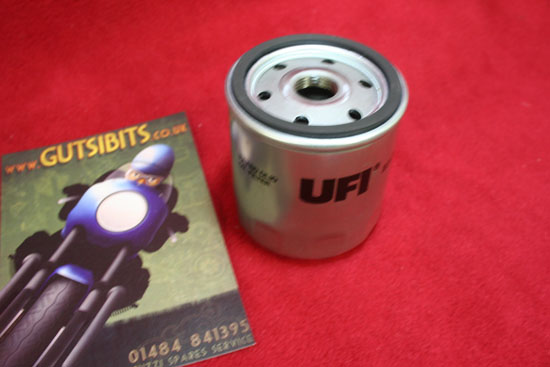

8 sided UFI 23 287 00 cartridge oil filter with sealing rubber.

From late 2015 onwards 1200 models used SIA06428

See SIA15301 for alternative filter from Mahle. Please note that Daytona 1000 models where filter screws into base of sump require SIA14530. This is a 8 sided oil filter. Use tool TOA41006 if your filter is located inside the sump, use tool TOA01201 if you change your oil filter without removing the sump



See ENA90948 for the oil filter cover o ring and SIA10900 for the sump plug seal

 30153000 GU30153000 30 15 30 00
 3015 3000 3015.3000 30.15.30.00

Dimensions:
84mm x 77mm diameter overall, for 19mm OD spigot. HF552 is probably Hi Flo alternative

14 sided cartridge oil filter with sealing rubber

This supersedes the 12 fluted filter B0363428 which is no longer available. See TOA41005 for oil filter removal tool. Fitted to 1200 8V motors from late 2015 onwards- earlier versions have oil filter SIA15300

 This part is due back in stock soon, call 01484 841395 to reserve yours

If you would like to be emailed once this item is available again then click here

2A000668

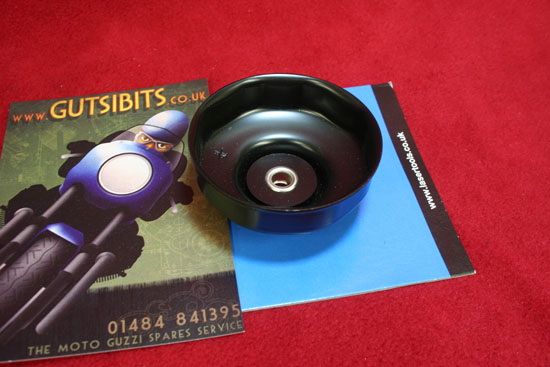

8 sided oil filter tool for new UFI filters

This tool is for models where the sump needs to be removed to get to the oil filter. This fits SIA14530 and the later metal finish filter SIA15300 which was updated to 8 sides in late 2018. Not suitable for Mahle oil filters

Dimensions:
81mm OD

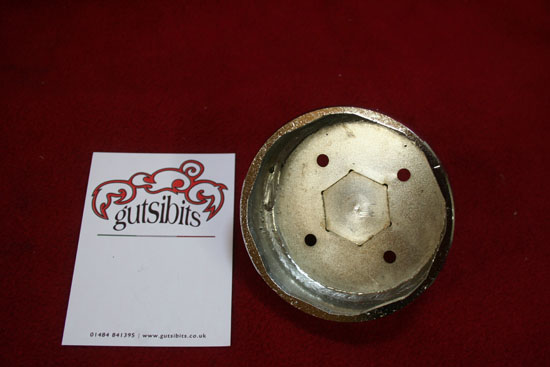

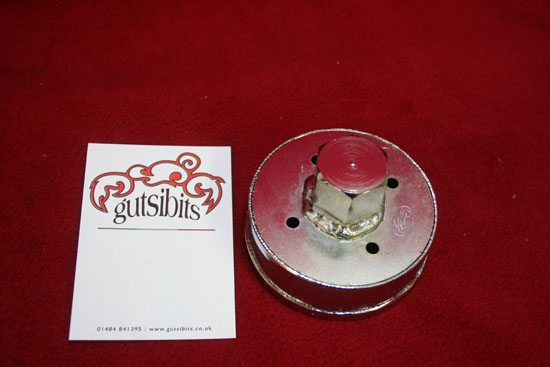

8 sided oil filter tool for removing oil filter SIA15300 from the sump. For models with an oil filter cover in the base of the sump (V11 Sport etc), the reverse side of the tool also allows you to remove the cover meaning you do not have to drop the complete sump to perform a filter change. Also works with newer CARC models which do not have an oil filter cover

 This part is available by special order, request a quote

01929100-z 01929100 GU01929100 01 92 91 00
 0192 9100 0192.9100 01.92.91.00

Dimensions:
82mm OD 8 flats

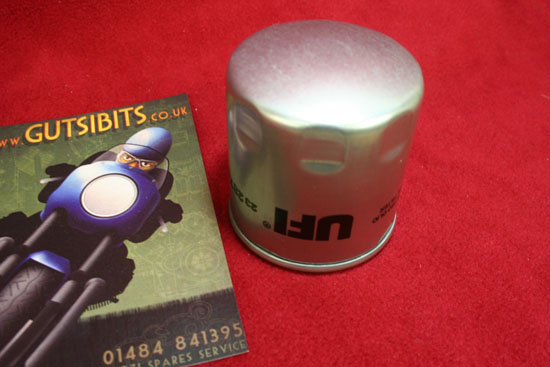

Cartridge oil filter UFI 23 149 00

Fits Daytona 1000 models where filter screws into base of sump. This is an 8 sided UFI filter.
Use tool TOA41006 if your filter is located inside the sump, use tool TOA01201 if you change your oil filter without removing the sump.

You may also require SIA10070 which is the crush washer for the drain plug and ENA14036 (sump gasket). Please note that Daytona RS and T5 Polizia use filter SIA15300

 14153000 GU14153000 14 15 30 00
 1415 3000 1415.3000 14.15.30.00

Dimensions:
For 16mm threaded spigot
