 Search results for  "BRA28657" for all models

3 Results -

Sort by Title
Sort by Price

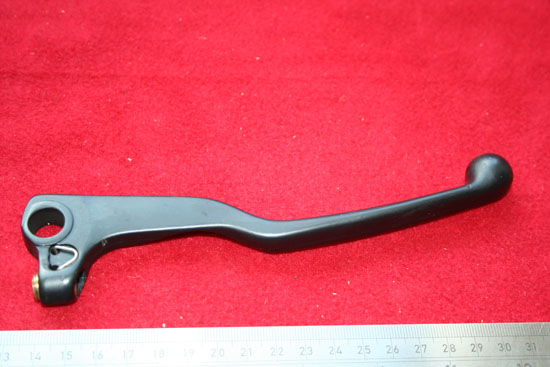

Brake Lever Front PS11, PS13 & PS16
BRA28657 Fits V65 Florida, 750 Targa, Strada 750, V75 PA, Cali 3, Mille GT, Spada 3, 1000S, Le Mans 1000, Quota 1000
click to view full size

Dimensions:
11.6mm internal diameter mounting hole

Adjustable front black brake lever for PS 11, PS 13 and PS 16 rectangular master cylinder.

Also known as Guzzi ref. 28605678. See BRA01630 or BRA01640 for a span adjustable alternative and HAA10850 for lever pivot pin

this part is due in stock from our Italian suppliers This part is due back in stock soon, call 01484 841395 to reserve yours

10270640-z 10270640 GU10270640 10 27 06 40
 1027 0640 1027.0640 10.27.06.40

£25.50

INC VAT

£21.25  EX VAT

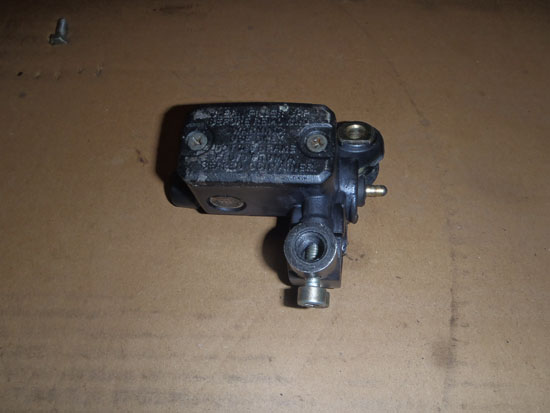

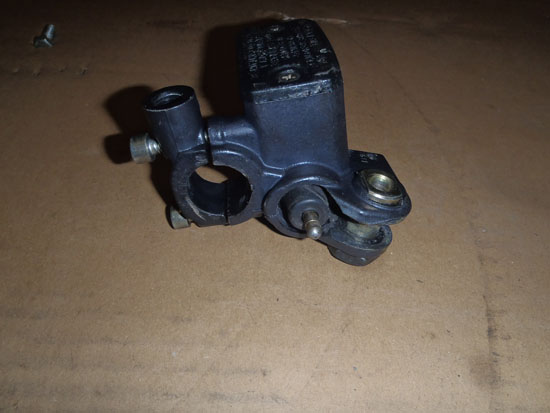

Used Brembo Handlebar Master Cylinder PS13
BRG03145 Fits 850/1000 ALL Models, Cali 1100 (1994-1998), Nevada 750 (1991-2003), V35 II, Imola ALL, V50 3, Monza ALL, V65 ALL, V75, Strada 750, 750 Targa, 750X, 750T, Cali EV (1998-2002), Cali Jackal (1999-2002)
click to view full size
Example photo for illustration only
click to view full size
Example photo for illustration only

Brembo PS 13 handlebar mounted front master cylinder

Large OD lever pivot, uses lever BRA28657 or BRA30605

Sorry this part cannot be shipped to the US or Canada

6 month warranty on this part

We need to check stock We need to check whether we have stock of this part, check availability

 28660278 GU28660278 28 66 02 78
 2866 0278 2866.0278 28.66.02.78

Prices from

£30.00 - £80.00

inc VAT dependent on condition

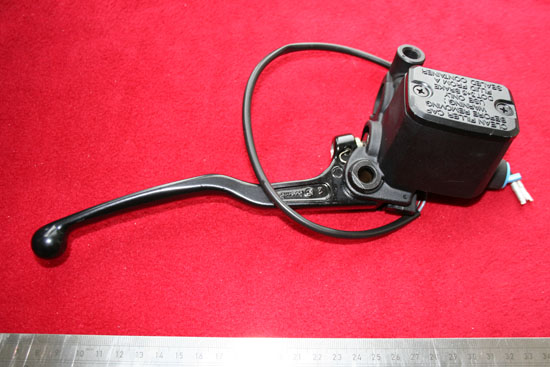

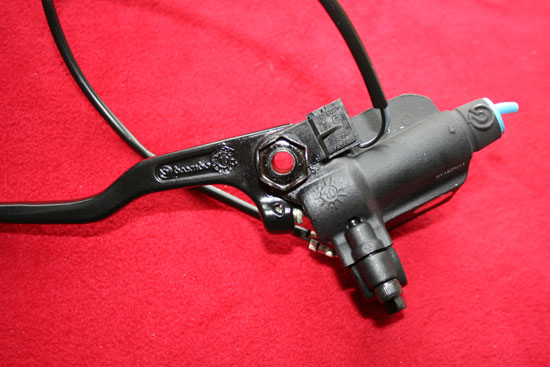

PS16 Handlebar Master Cylinder
BRA30125 Fits 850T, 750S, Quota 1100
click to view full sizeclick to view full size

Brembo PS 16 handlebar mounted front master cylinder. This replaces the PS 15 handlebar mounted master cylinder which was unavailable for many years. The PS16 has a small rectangular fluid reservoir. Use this master cylinder if you are de-linking your brakes to ensure the correct piston operating ratio (if you retain the original PS12 or PS13 your front brakes are likely to feel 'spongy')

Supplied complete with lever and brake lever switch. Uses lever BRA28657 or BRA30605. Also known as Guzzi ref. 28660178. Can be used to replace round PS15 master cylinder BRA07338 and the discontinued PS16 Guzzi ref. 978606

this part is available by special order This part is available by special order, request a quote

 30660125 GU30660125 30 66 01 25
 3066 0125 3066.0125 30.66.01.25

£205.00

INC VAT

£170.83  EX VAT
