Wheel bearing

1 required for rear wheel, 2 for front wheel except on Nuovo Falcone where two are used in rear wheel. Check parts book or call for exact applications

 92204217 GU92204217 92 20 42 17
 9220 4217 9220.4217 92.20.42.17

Also fits Royal Enfield Himalayan (Rear)

Dimensions:
40mm OD

5 pin mini relay

Also known as Guzzi ref. 30732560 Can be used in place of 4 pin mini relay ELA01561. We recommend keeping a spare one in your tool kit

 01731760 GU01731760 01 73 17 60
 0173 1760 0173.1760 01.73.17.60

Dimensions:
24mm x 15mm x 25mm body

UFI 30 989 00 flat type air filter, paper filament in rubber surround

See SIA30361 for a reusable K & N air filter

 30113600 GU30113600 30 11 36 00
 3011 3600 3011.3600 30.11.36.00

Dimensions:
220mm x 135mm x 35mm

UFI 25 531 00 cartridge oil filter for 1989 on small block engines. See TOA19001 for a inexpensive tool to loosen and tighten the dipstick, If this item is out of stock we do stock a like for like replacement, which is this item SIA27301 .

For an oil change we also recommend 1x ENA90444 (Oil filter cover O ring), 1 x SIA10070 (large sump drain crush washer), 1 x SIA10900 (small sump drain crush washer) and 1 x SIA12200 (filter cover crush washer). Some 750 XPA models use SIA19530, we advise you to check your old filter before ordering. Also known as Guzzi ref. 2A000633

 27153085 GU27153085 27 15 30 85
 2715 3085 2715.3085 27.15.30.85

Dimensions:
120mm x 45mm diameter overall

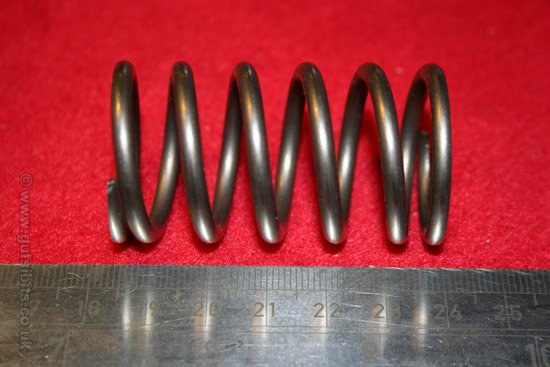

Outer valve spring

13037400-z 13037400 GU13037400 13 03 74 00
 1303 7400 1303.7400 13.03.74.00

Dimensions:
32mm OD

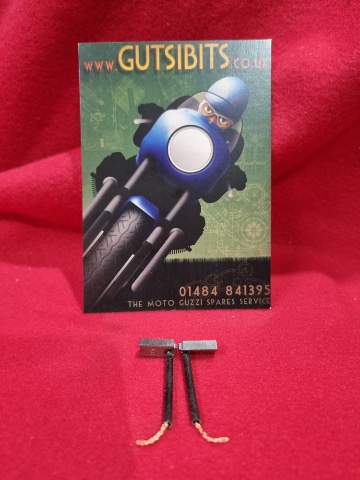

Replacement alternator brushes or brush kit for Bosch alternators

Also known as Guzzi ref 17712453

14712453-z 14712453 GU14712453 14 71 24 53
 1471 2453 1471.2453 14.71.24.53

Also fits Benelli 900 Sei (Series 2)

Rotor bolt for Bosch alternator

Not previously available from Guzzi. May also be used on a Saprisa alternator

 14712459 GU14712459 14 71 24 59
 1471 2459 1471.2459 14.71.24.59

Dimensions:
M8 x 50mm

Brembo brake master cylinder overhaul kit for handlebar, undertank (cable operated) mounted, handlebar mounted and rear PS 12 master cylinders. Contains seals, brake grease, spring and piston. PS12 handlebar master cylinder fitted to early 850 and 1000 models. PS12 rear master cylinder fitted to Nevada 750

This seal kit is also known as 082039797. NB repair kit instructions refer to rear master cylinder. To fit this to a PS12 handlebar mounted cylinder you will need to punch the old piston out using a thin drift through the hole at the banjo bolt end of the master cylinder. Carefully note the order of the ring and washer as the piston comes out and replace with components from kit. Brembo no. 110279720. See this link for help with fitting this kit

 17659352 GU17659352 17 65 93 52
 1765 9352 1765.9352 17.65.93.52

Also fits Ducati 500 SL Pantah, Ducati 350/500 Twin GTV, Ducati 350/500 SL Pantah, Benelli 500 Quattro, Benelli 504 Sport, Benelli 250 2C, Benelli 900 Sei, Laverda Montjuic, Harris F1

Dimensions:
Solid piston 12.7mm OD x 65mm

Brembo brake caliper rebuild kit for one P2 F08 (P8) caliper, contains 2 pairs of seals, O ring and 2 M10 bolts

This seal kit is for F08 calipers fitted to front of all these models. Also used on some Triumph Bonnevilles, MZs, Ducati 600 Pantah, 500 Pantah, 500 Sport Desmo, 500 GTV, 650 SL, 750 F1, 750 F1B, 750 Paso, 750 Sport, 900 MHR, 900 SS, 900 S2, 906 Paso, 100 R1, 100 S2 Desmo, Laverda Jota 1000 and Laverda 1200 Anniversary. Brembo ref. 120274110

See BRA10310 for less expensive replica kit

 14659000 GU14659000 14 65 90 00
 1465 9000 1465.9000 14.65.90.00

Also fits Benelli 354, Benelli Sei, Ducati 250/350/450 Desmo (-1976), Ducati Pantah, Ducati F1, Ducati 750 Paso (1987-1990), Ducati 750 Sport (1988-1990), Ducati 860 GT/GTS, Ducati 900 GTS, Ducati Hailwood Rep, Ducati 900 Darmah (1977-1978), Ducati 906 Paso (1988-1989), Ducati 1000 R1 Hailwood Ref., Hesketh, Horex HRD 600, Horex 500/600 Columbus, Laverda 750 SF2, Laverda 750 SFC, Laverda 750 SF3, Laverda 1000 3C (1974-1978), Laverda 1000 3CL (1976-1981), Laverda 1000 RGS/RGA, Laverda 1000 SFC, Laverda 1200 (1978-1979), Laverda 1200 TS/Mirage (1981), MZ ETZ 125/150/250/300 (1985-1992), Norton Classic (1989), Norton Interpol (1989), Triumph T140 (1985-1988 Brembo)

Round CEV amber indicator lens

Mounts using two screws (not supplied). Also known as Guzzi ref. 39753771 and 14753750. See LIG19759 for Larghi lenses, they are not interchangeable with this CEV lens

39753770-z 39753770 GU39753770 39 75 37 70
 3975 3770 3975.3770 39.75.37.70

Dimensions:
70mm overall diameter, 57mm mounting centres
